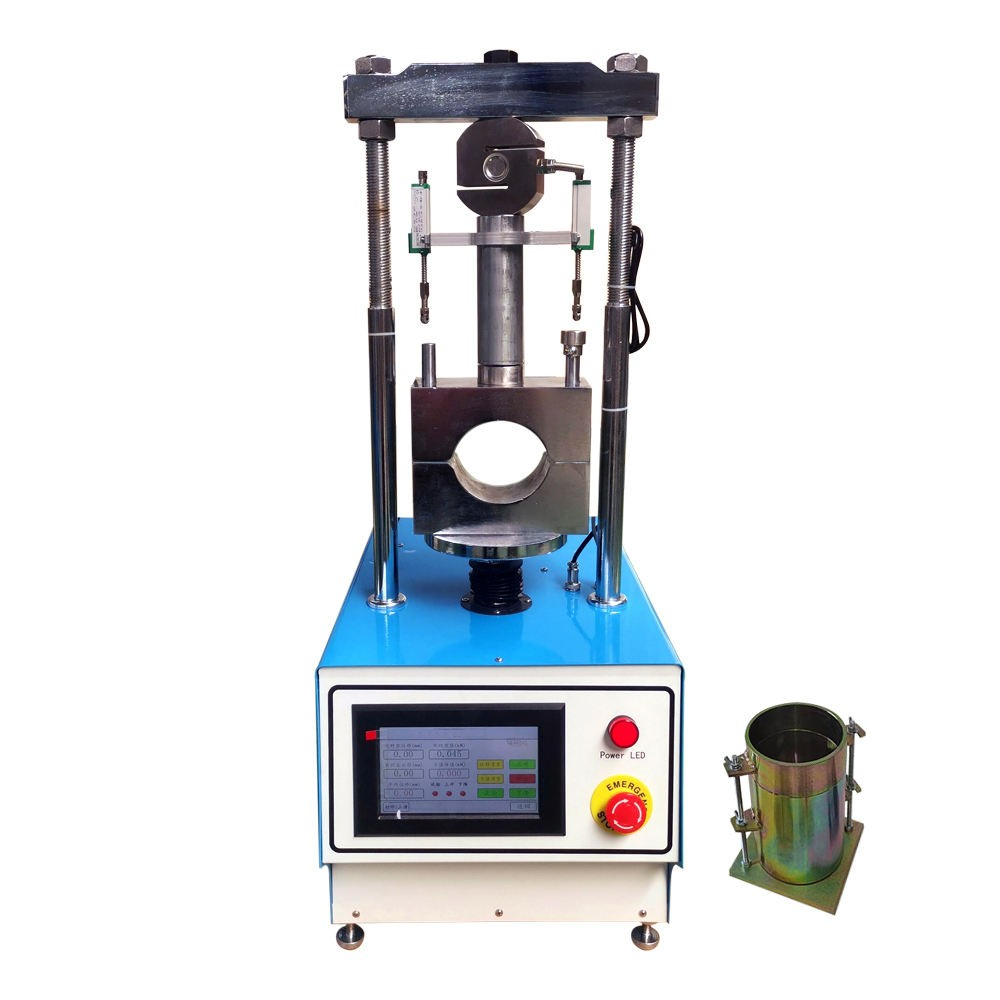

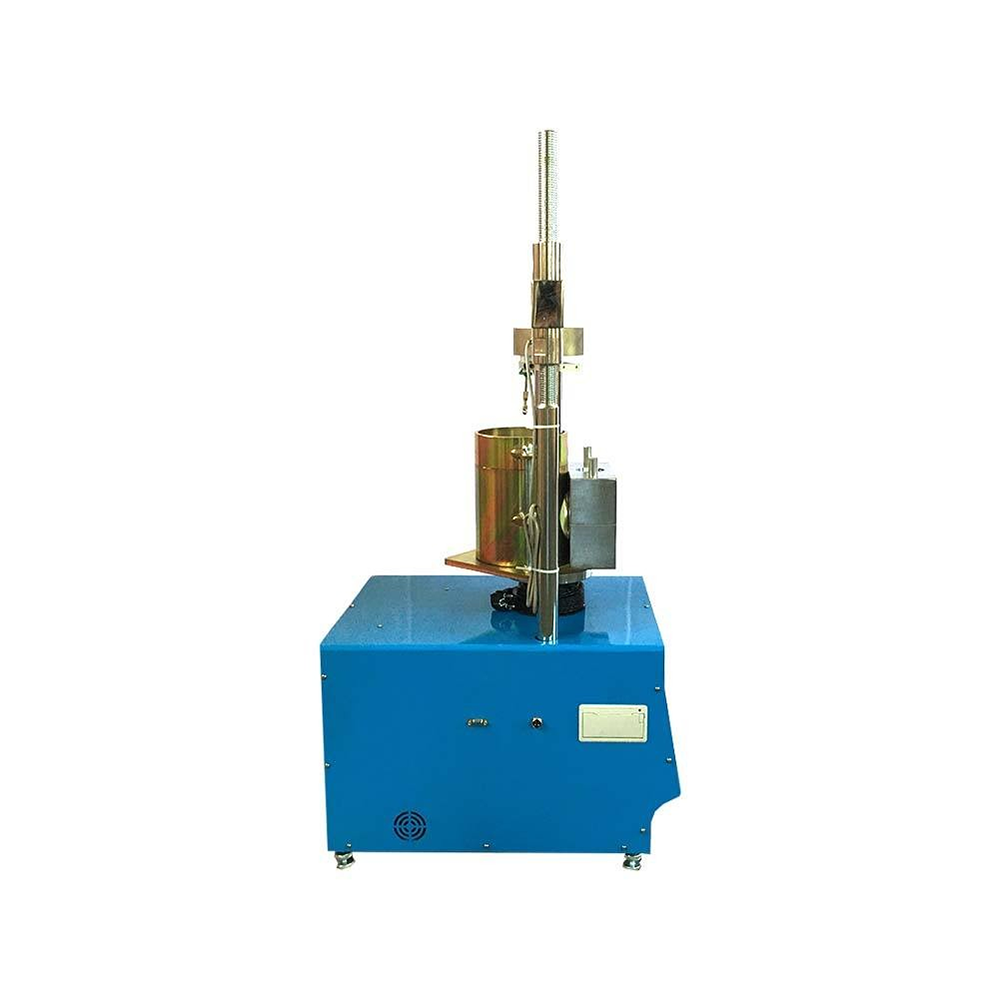

Concrete CBR and Marshall test machine

(1) Rated pressure: 50kN, measurement error: 1 ± 0.05% (F.S)；
(2) Test displacement: (0-25) mm, measurement error: 1 ± 0.5% (F.S);
(3) Loading rate: 1 mm / min-50 mm / min (can be set freely);
(4) Display: 7 Inch Touch color screen;
(5) Working power supply: AC (220 ± 10%)V/ 50Hz;
(6) Power consumption: 1500W;
(7) Spacing between two columns: 220mm;
(8) Overall dimension: 360 * 470 * 900mm;

Details Inquiry

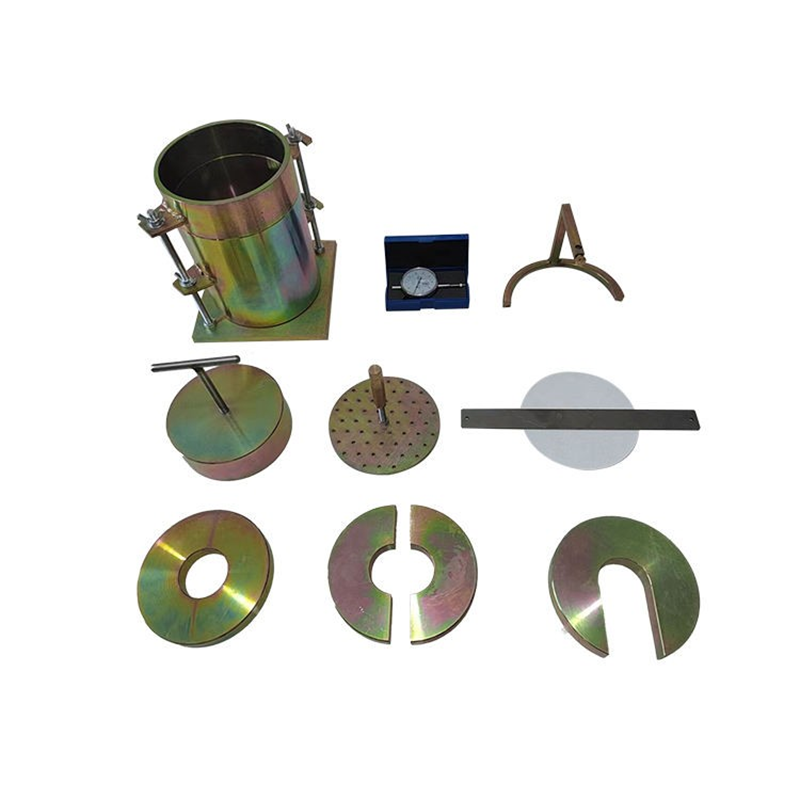

This machine is designed and manufactured by combining bearing ratio (CBR) test with Marshall stability test. Selecting different sample fixtures according to the test requirements can complete the bearing ratio (CBR) test and Marshall stability test. It can also be used for other tests that meet the requirements. The product design structure is reasonable, the appearance is beautiful and generous, the test operation is simple, and the results are accurate and reliable.
